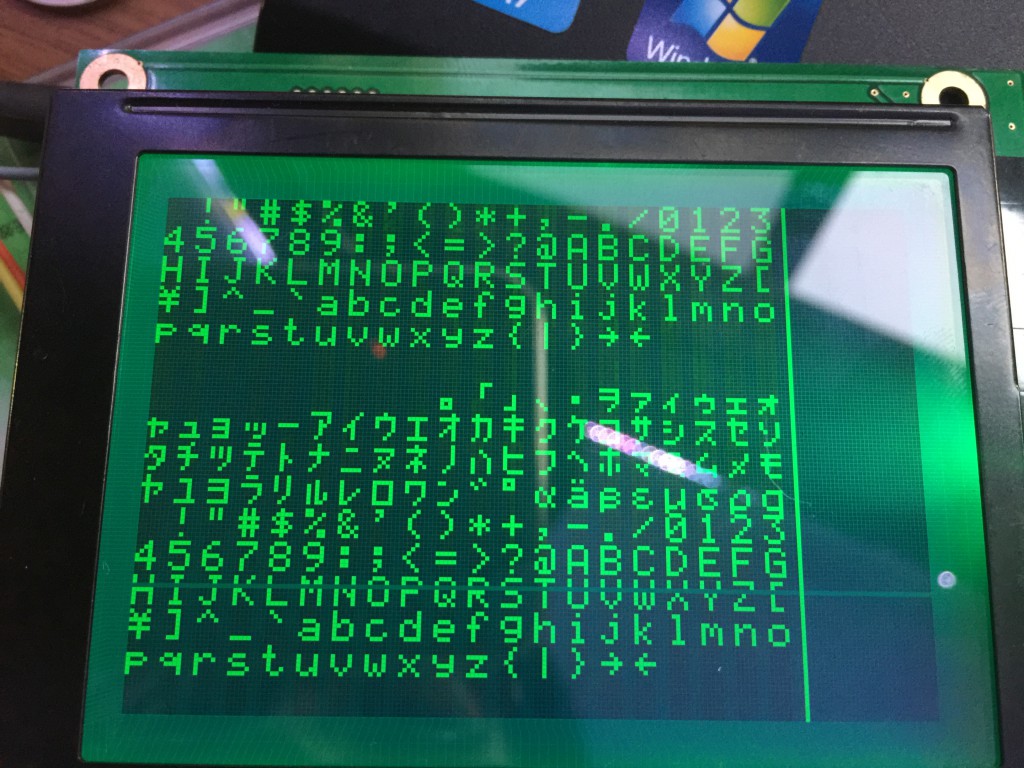

This screen was given to me from Grassmover. But I havn't played with it since then. I tried to drive it last night, and found out that the VEE is wrong (3.xV), it should be a negative voltage. Then I found the inductor was broken, so I replaced one. Now it is working correctly except for one missing line.
Specification
- Model: WG192168A
- Type: Monochrome Graphic Dot-Matrix
- Mode: STN Negative
- Resolution: 192*168
- Color Depth: 1bpp
- Controller: LC7981 compatible
- Size: 92.5*68.8 (mm)
Pinout
- VSS
- VDD
- VO
- RS
- R/nW
- E
- DB0
- DB1
- DB2
- DB3
- DB4
- DB5
- DB6
- DB7
- nCS
- nRST
- VEE
- NC
- A
- K
