#LetsDriveLCD [23] – AND1013ST-OE

2017-08-13

/uploads/blog/2017/dsc_8626_dxo.jpg

I got this screen from yleee around March-April this year, but never got around to drive it.

The chip combination already tells the story: T6963C controller, no DCDC/charge pump for voltage generation, but it does have the bias voltage divider/ buffer. The resolution is 160x128. (I thought it was 320x80 and non-square pixel at first time).

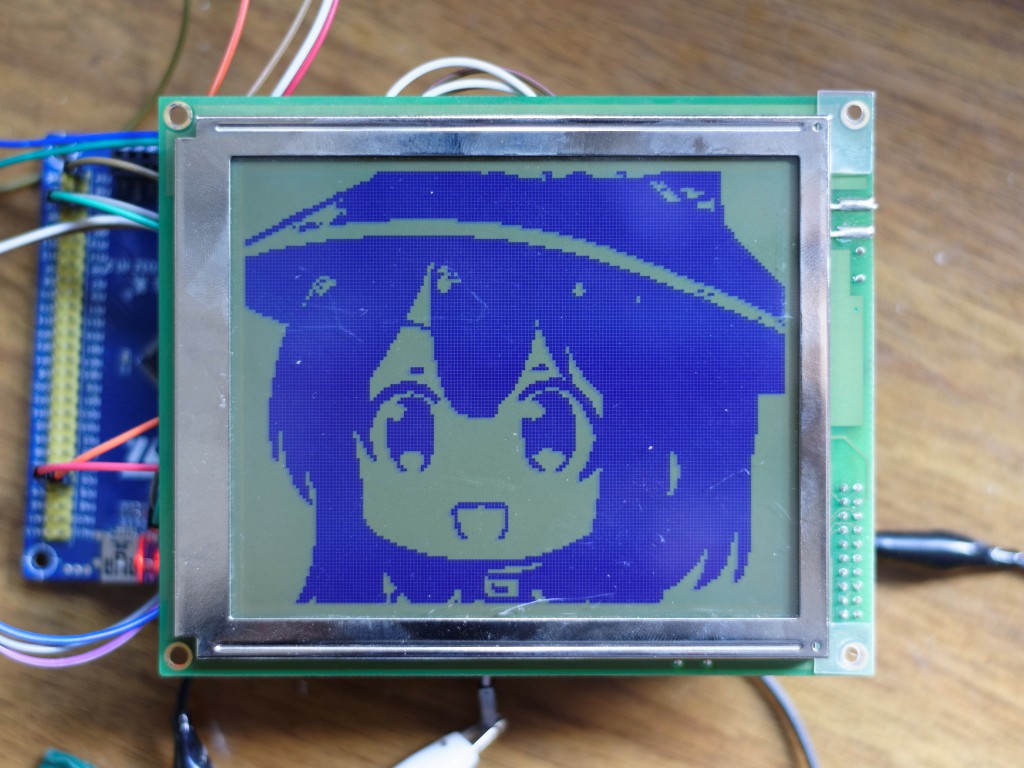

About the definition, it uses standard QFP package, so that's fairly easy to derive. So here is the result.
