Another cheap LCD, doesn't currently have any use of it though.

The screen model tells me it's a 1601 character screen. So based on the chip size I could know the model number, then based on the datasheet and ITO trace I got the pintout.

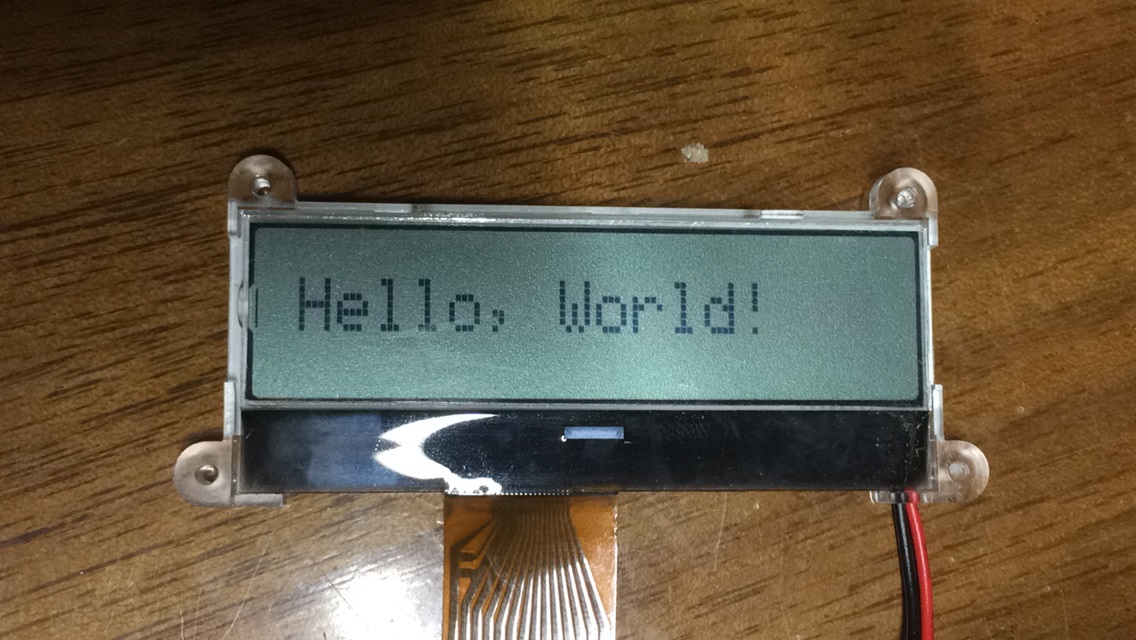

Then comes the result. Seems like the screen is a TN one instead of HTN or STN, resulting in extremely poor viewing angles.

Basic Information

• Model: HDMG1601A
• Type: Monochrome Character Dot-matrix
• Mode: TN Positive
• Resolution: 16x1 character, 5x7 each
• Greyscale: Monochrome 1bit
• Controller: ST7032I
• Size: 60.1*23.2(mm)

Driving Information

Pinout

1. V0
2. VDD
3. VSS
4. D7
5. D6
6. D5
7. D4
8. D3
9. D2
10. D1
11. D0
12. E
13. RW
14. RS

Initialization sequence

LCD_WriteCmd(0x38);
LCD_WriteCmd(0x39);
LCD_WriteCmd(0x14);
LCD_WriteCmd(0x7F);
LCD_WriteCmd(0x5F);
LCD_WriteCmd(0x6F);
Delayms(200);
LCD_WriteCmd(0x0C);
LCD_WriteCmd(0x01);
Delayms(2);
LCD_WriteCmd(0x06);
