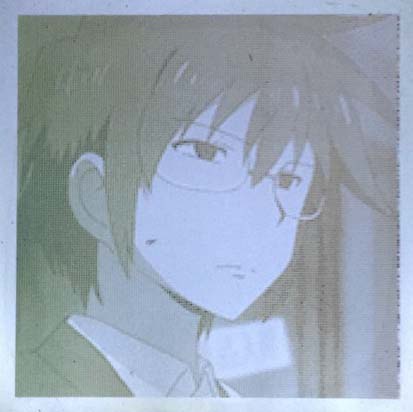

I have got this for some while. But I had fairly bad luck driving it previously. But it turns out it was due to a problem of pin multiplexing on my development board. After fixing that, this screen is working fine.

msc160160

Specifications

  • Model: MSC-160160-NJXL
  • Type: Monochrome Graphical Dot-Matrix
  • Mode: FSTN Positive
  • Resolution: 160×160
  • Color depth: Up to 6bpp grayscale
  • Controller: UC1698U
  • Size: 66.9*72.3 (mm)

Pinout

  1. VSS
  2. A0
  3. WR
  4. RD
  5. CS
  6. RST
  7. VDD
  8. D0
  9. D1
  10. D2
  11. D3
  12. D4
  13. D5
  14. D6
  15. D7
  16. LEDK
  17. NC
  18. LEDA
